DS-AC1 Control Station

Product Highlights

  • Make All Your AV Systems and Room Devices Work Together Seamlessly.
  • One Touch to Turn the Solution On or Off. All on One Intuitive Interface.
  • Supports Control for over 20 Devices, Including AV Equipment like PTZ Cameras, Microphone Systems, Lights, Screens, Shades, Switches, Projectors, and More.

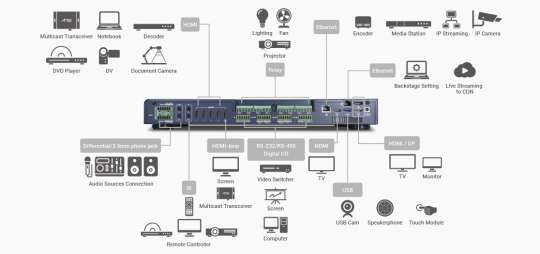

  • Enables Direct Control of Devices in the Room with Onboard RS 232/485, IR Learning & Blaster, Relay, Digital I/O, Differential Audio, and USB HID Ports.
  • Seamlessly Switch, Play, and Live-Stream Videos from HDMI, USB, and Local/Remote IP Steams with Ease.
  • Web-based Management and Control via Browsers on Mobile Devices, Tablets, and Laptops.
  • Monitor Power Usage to Get Statistics on the Power Consumption of all Devices.
  •  Perfect for Classroom, Conference Rooms, and Training Space.

THE FEATURES

Smart and User-Friendly Control in Any Spaces

AREC DS-AC1 Control Station is a network-based control solution that streamlines the workflow of Pro AV and other equipment in any room. By seamlessly connecting all room devices, including A/V, lighting and air conditioning, this solution combines a control station with the intuitive graphic user interfaces for enhanced ease-of-use. With just one touch, you can effortlessly manage and control multiple devices using the DS-AC1. DS-AC1 also allows you to customize multiple modes to optimize efficiency for everyone in the room.

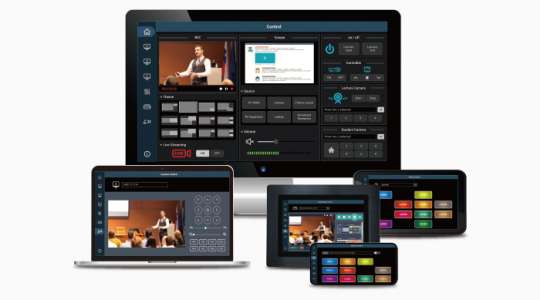

Intuitive Graphic Control Interface

AREC DS-AC1 has web-based and device-direct-output graphic control interfaces that enable end-users to easily and quickly control room functions. The control interface of DS-AC1 supports multiple logins and diverse control options with devices, including Android TVs, touch panels, IFPD, mobile phones, and computers. In addition, through DS-AC1, users can also directly control AREC media stations and AREC PTZ cameras within the room.

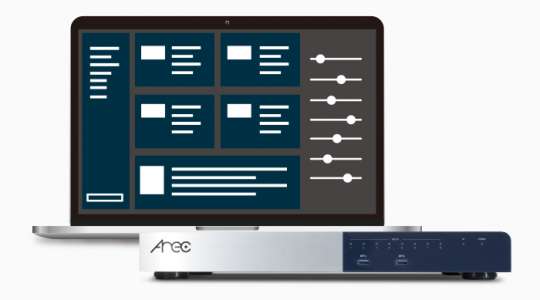

Easy to Use Configuration Backstage

DS-AC1 provides a complete web-based configuration backstage, enabling you to configure settings and GUIs for controls effortlessly. The backstage makes it easy to set up and customize control patterns without any programming knowledge.

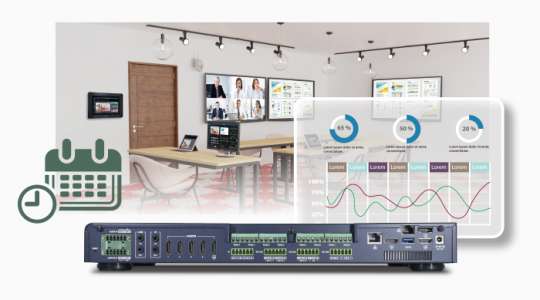

Power Consumption Statistics to Achieve Energy Savings

Designed with energy saving in mind, AREC DS-AC1 calculates the power consumption of hardware devices connected to the control station. It also supports scheduling for automatic power on/off. Power consumption statistics can be listed by device category and generated in both graphical and informative reports. Users can utilize the statistics to optimize the energy efficiency and achieve energy-saving goals.

Embrace Flexibility with AREC's APIs

The AREC DS-AC1 control station offers APIs to seamlessly integrate with third-party systems. This offers a wider range of possibilities and improves efficiency for devices control, making it more user-friendly for all who enter the space. The solution is ideal for smart classrooms and multifunctional conference room.

the SPECIFICATIONS

Model Name
AREC DS-AC1
Video Input Interfaces
  • 4x HDMI (HDMI 2.0b; HDCP 2.2/1.4; HDR & HDR10)
  • 2x RJ-45¹ (Supports IP streaming & up to 4 sources)
  • 3x USB (Supports UVC source)

    Note 1: Supports network protocol: H.264 RTMP/RTMPS/RTP/ RTSP/SRT and NDI|HX. Supports network cameras, encoders, and other streaming sources
Audio-in Interfaces
  • 1x 3.5mm Stereo
  • 1x Differential audio-in
  • 4x HDMI
  • 1x RJ-45: together with IP streaming & up to 4 sources
  • 1x USB: (Supports UAC source)
Video Outputs
  • 1x HDMI for loop out (internal switch from adjacent 4 HDMI inputs)
  • 1x HDMI for preview (PGM with on-screen GUI)
  • 1x HDMI for source view (inputs display or multi-source monitoring)
  • 1x DisplayPort for source view (inputs display or multi-source monitoring)
  • 1x RJ-45 (1 streams: H.264/AVC digital video over Ethernet via protocols of RTMP/ RTMPS/ RTP/ SRT and NDI|HX)
Audio Outputs
  • 1x 3.5mm Stereo Line out
  • Balanced audio-out with a 6-pin Phoenix connector*1
  • 2x HDMI
  • 1x DisplayPort
  • 1x USB (UAC)
  • 1x RJ-45 (1 streams: H.264/AVC digital video over Ethernet via protocols of RTMP/ RTMPS/ RTP/ SRT and NDI|HX)
Compatible Streaming Input Protocols

RTP, RTMP (RTMPS), SRT, NDI|HX
Live Broadcast to CDN or Stream Server

Stream up to 1 platforms simultaneously
Web Control Interface

Manual control via webpage from a computer, tablet, or mobile phone (for tablet or mobile phone, please use a wireless connection)
Video Switcher

Yes, through web-based interface or on-screen GUI for manual controls
IR Signal
  • 3.5mm female connectors
  • 1x In, 1x Out
  • TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
  • IR output carrier frequency: 38 kHz
  • IR learning carrier frequency: 38 kHz
  • IR learning capture distance: 2" (5.1 cm) to 12" (30.5 cm) from the front panel
Relay Ports
  • 8 x 3.5 mm captive screw connector, 3-pole
  • Relay control contact rating: 10A/250VAC, 10A/30VDC
Digital I/O Ports
  • 3 x output, 2-pole
  • Digital outputs: 250 mA sink from 5 VDC max.
  • Pin configurations: 1, 2, 3 = digital I/Os 1, 2, 3; G = Gnd
RS-232 Ports
  • 4 x 3.5 mm captive screw connectors, 3-pole
  • 1x In, 3x Out
  • Signal: RX, TX, GND
RS-485 Ports
  • 1 x 3.5 mm captive screw connectors, 6-pole
  • Signal: DATA-, DATA+, GND
Group Management*

Yes, through ARECloud or advanced software services
Camera Control

VISCA / PELCO-D / PELCO-P / VISCA over IP/ ONVIF profile S/NDI
