DS-9CU Speaker Tracking Station

Product Highlights

Automatic Speaker-View Switch. Add a Customized Information Automatically
Seamlessly Integrates with Multiple World-Renowned Conference Microphone Systems to Automatically Switch Close-up Views Based on the Person Speaking
Supports up to 9 Cameras Operating Simultaneously, with Automatic Layout Switching to Accommodate Different Numbers of Speakers
Supports Text and Layer Editing to Add Names, Organizations, Logos and Different Backgrounds
Supports 3 Video Outputs, Capable of Displaying Combined Views, Single Close-up Views, and Multi-Split Operational Views
Supports 4K UHD 3840 x 2160 Resolutions and 1 PGM 4K Streaming
Taking the Meeting Experience and Efficiency to New Heights
Available APIs for Integration

THE FEATURES

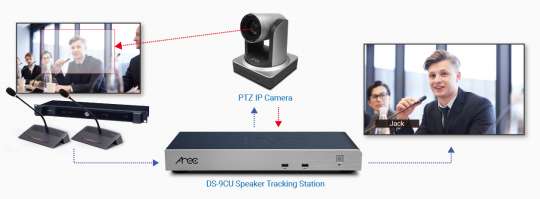

Speaker Tracking, Auto-Switching, and Real-Time Overlay Addition

AREC DS-9CU Speaker Tracking Station seamlessly integrates with recommended PTZ cameras and conference microphone systems to automatically capture and switch to close-up views of the person speaking. It also adds a customized overlay in real time, ensuring that all participants can clearly view the speaker’s image and key details on the main display. When the speaker stops speaking by pressing the cancel button, DS-9CU can switch to the default setting automatically.

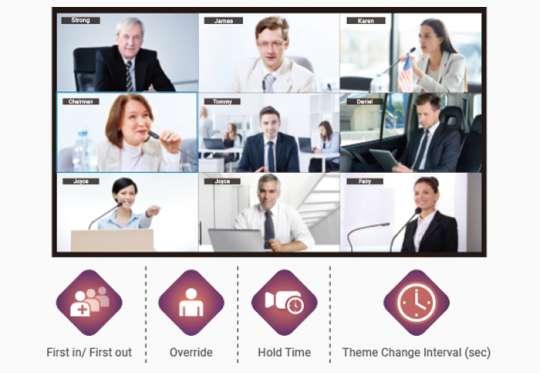

Supports up to 9 Cameras with Automatic Layout Switching

To meet diverse conferencing needs, AREC DS-9CU supports up to 9 cameras operating simultaneously. It can automatically switch to the layout based on the number of speakers, ensuring that all speakers are clearly displayed on the main screen for participants. Additionally, DS-9CU offers speaker auto-control setting, including override and FIFO modes. The new Theme Change Interval function also enhances the viewing experience.

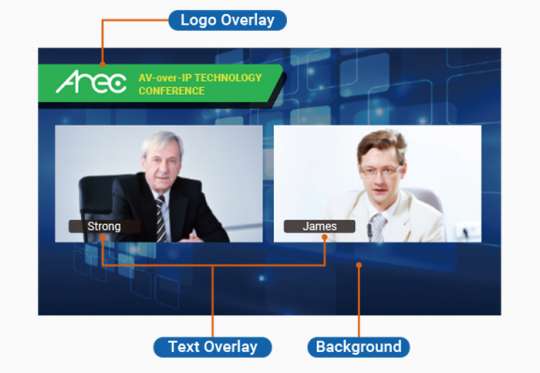

Available for Customized Overlays and Background

AREC DS-9CU allows users to customized conference visuals by adding the logo, background images and text overlay for individual speakers. This enhances clarity and professionalism in conference streaming and video recording.

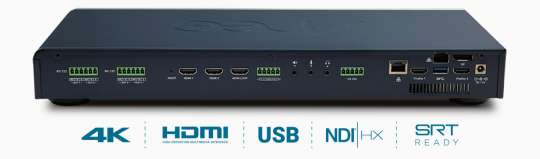

Versatile Video Input Interfaces: HDMI / USB / RJ-45, up to 4K

AREC DS-9CU Speaker Tracking Station offers diverse connectivity options: HDMI, USB jack and RJ-45 interfaces. It supports 4CH 4K UHD or up to 9CH Full HD video sources. DS-9CU is compatible with network-based H.264 RTMP/RTP/RTSP/SRT, and NDI|HX video sources.

the SPECIFICATIONS

Model Name	AREC DS-9CU
Video Inputs	● Max. 9 channels video sources ● HDMI/ USB(UVC): up to 2 channels ● Full HD network camera / stream: up to 9 channels
Resolution Range (Inputs)	● HDMI 1 max.: 2160p30 ● HDMI 2 max.: 2160p60 ● RTMP/RTMPS/RTP/RTSP max.: 1080p60 ● USB(UVC) max.: 2160p30 The maximum processing resolution is 1080p30, when 9 video inputs stream simultaneously.
Video Outputs	● 1 x HDMI for loop out (max. 4K UHD @60Hz, HDMI 2 loop through) ● 1 x HDMI (Display 1, max. 1080p, quad or 9-split layout, supports camera monitoring with GUI tool bar) ● 1 x DP (Max. 4K UHD @30Hz, supports single source display) ● 1 x HDMI (Display 2, max. 4K UHD @30Hz, PGM output) ● 1x RJ-45¹ (digital video over Ethernet) Note 1: Supports network protocol: H.264 RTMP/ RTMPS/RTP/RTSP, NDI\|HX, SRT(push). Up to 1CH 2160p streaming at 30 fps
Overlay	● Text: user defined, showing on each video channel with selected locations. ● Images: user-defined image on the mixed video.
Background Images	Able to save user-defined background images
Layout Auto Switching	● Automatically switching depends on person speaking ● Manually control by remote web interface on mobile devices
Speaker Action Setting	● First In/ First Out and Override modes ● Supports camera hold time setting ● Supports theme change interval setting (sec)
Audio I/O	● 1 x 3.5mm Stereo Mic in ● 1 x 3.5mm Stereo Line in ● 1 x 3.5mm Stereo Mic in ● 1 x Balanced audio-in with a 5-pin Phoenix connector ● 1 x 3.5mm Stereo Line out
Camera Control	Yes, supports 5 x RS-232 output ports or via LAN port VISCA/ PELCO-D/ PELCO-P/ ONVIF profile S/ VISCA over IP
Mouse Device	Through USB interface connection
External Control	Yes, supports 1 x RS-232 input port and WAN port with TCP API commands for system integration
Output Switch	Supports automatic mixed video output switching according to signals received from integrated conference microphone systems
Admin Management	Built-in web-based administration backstage
