DS-4CU Speaker Tracking Station
Product Highlights
- Automatic Speaker-View Switch. Add a Customized Graphic Automatically
- Enable All Meeting Participants Can See the Close-up View of the Active Speaker and a Customized Fraphic Together on the Screen Clearly and Automatically
- Taking the Meeting Experience and Efficiency to New Heights
- Switch and Output Designed View Automatically Depending on the needs When Multi-Participants Speak Simultaneously
- Seamlessly Integrated with Compatible Digital Discussion System, such as Audio-Technica, Shure, TELEVIC, and More
- Perfect for Conference Rooms, Parliaments and City Halls
- Support Auto-Switching and Conferencing Recording with AREC Media Station
- Available APIs for Integration
THE FEATURES

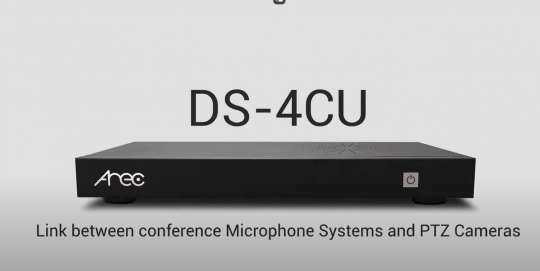

Introducing AREC DS-4CU Speaker Tracking Station
Taking the meeting experience and efficiency to new heights, AREC DS-4CU, a new and innovative Speaker Tracking Station, is designed to make meeting discussion and meeting recording more productive and smart.

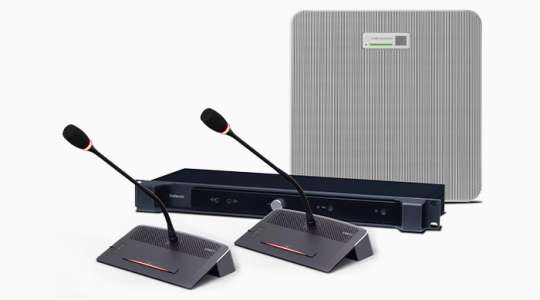

Supports Many Brands of Conferencing Microphone Systems
AREC DS-4CU Speaker Tracking Station has integrated with digital discussion systems and ceiling array microphones from various popular brands. This integration enhances meeting experiences by providing a clear view of the speaker based on microphone triggering or speaker position. It improves the effectiveness of meeting communication and ensures that all participants and their suggestions receive equal attention.

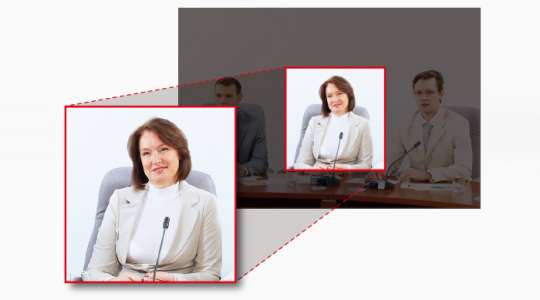

Tracking and Focus on the Active Speaker
Paired with the recommended Conference Microphone System and PTZ Cameras, AREC DS-4CU Speaker Tracking Station enables the PTZ cameras automatically and precisely track and focus on the active speaker when he/she presses the PTT (push-to-talk) button or when the speaker’s location data has been received.

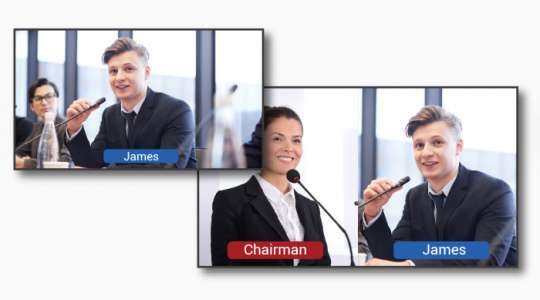

Auto Switching and Auto Adding a Customized Overlay
DS-4CU supports camera switching, adding a customized overlay, and speaker’s output automatically when active speaker’s microphone button has been pressed, enabling all participants can see the close-up view and overlay on the local display. The PTZ Camera goes back to full view when speaker finishes talking by pressing cancel button. DS-4CU supports users to easily add and select the output layouts and pre-made overlay images depending on your needs.

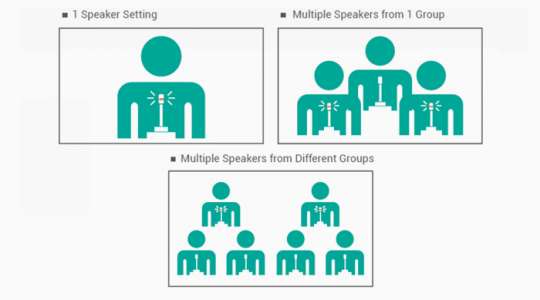

Auto Switch to the Designed Conference View as Multi-Participants Speak*
AREC DS-4CU Speaker Tracking Station can switch camera to the designated conference view when multiple participants press the microphone buttons and discuss at the same time. It supports multiple settings for flexible use

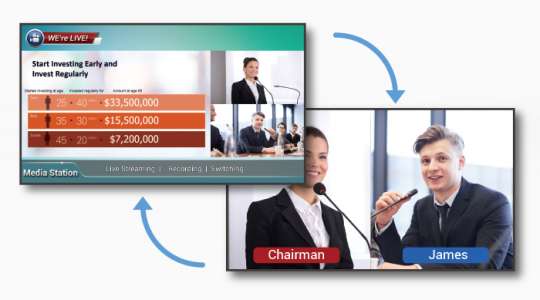

Automatic Camera Switching and Conferencing Recording with AREC Media Station
Coming with AREC LS Series Media Station, AREC DS-4CU not only outputs speaker’s sources, but it also switches the recording layout through the command for AREC Media Station control. When the conversation has been called off, AREC Media Station will go back to the original recording layout automatically.
the SPECIFICATIONS
| Model Name | AREC DS-4CU |
|---|---|
| Video Inputs | Max. 4 channels |
| Resolution Range (Inputs) | HDMI : 480i~1080p60 |
| Video Outputs | 1x HDMI display port: 1080p60 |
| Overlay Images | Multiple for user-defined |
| Video Output Layout | Multiple layouts for pre-defined, including full screen / picture-in-picture / picture-by picture / multi-channel split screen |
| Camera Control | VISCA / PELCO-D / PELCO-P / ONVIF profiles/ VISCA over IP |
| Mouse Device | Through USB interface connection |
| External Control | Yes, supports RS-232 port and TCP API command for system integration |
| Output Switch | Supports automatic output switching according to the setting of push-to-talk buttons with compatible conference microphone system |
| Recording Layout Switch | Supports automatic recoding theme switching according to the setting of push-to-talk buttons with compatible conference microphone system and AREC Media Station |
| Admin Management | Built-in web-based admin backstage. Sending control command through TCP API |
