CI-T21H Auto-Tracking PTZ Camera
Product Highlights
- Capable of Production Quality Full HD Video Output up to 1080/60p via HDMI, USB and IP transmission
- Easy Integration with Various Video Conferencing Software and Hard Codec System
- Compact and Affordable Professional PTZ Conferencing Cameras with Superior Auto-Tracking Technology
- Plug-and-Play Compatibility: USB connectivity to PC and Laptop
- Featuring a 10x Optical Zoom that Delivers Smooth Pan, Tilt, and Zoom-in Performance
- Accurate and Smooth Tracking Performance. Superior Continued Smooth Movement even in Situations where a Presenter is Wring on a Whiteboard or Close-up Shots
- ITT Technology Enables 2 AREC CI-T21H PTZ Cameras to Track Two Objects Separately Without Any Interfering
- Enable to Move and Work between Meeting Rooms Freely
- Professional Integration Capabilities including RS-232 and VISCA Protocol. IP Control Available
THE FEATURES
Automatic Tracking and Hands-Free Control
AREC CI-T21H, adopting AREC’s motion-sensitive tracking technology, makes tracking automatically and precisely. There is no interference from any other moving people. AREC’s tracking technology also provides flexibility, enabling users to move and use CI-T21H between meeting rooms freely without complicated settin

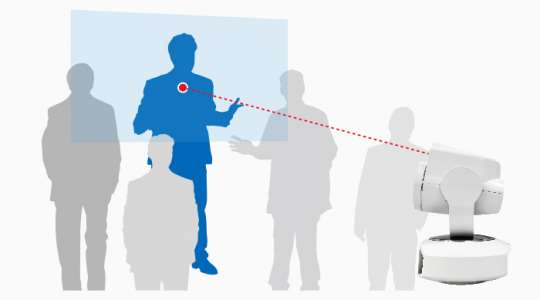

Accurate and Smooth Tracking Performance
In order to capture presenter's best performance, AREC CI-T21H provides superior continued smooth movement even in situations where a presenter is writing on a whiteboard or close-up shots, just like a professional cameraman does.

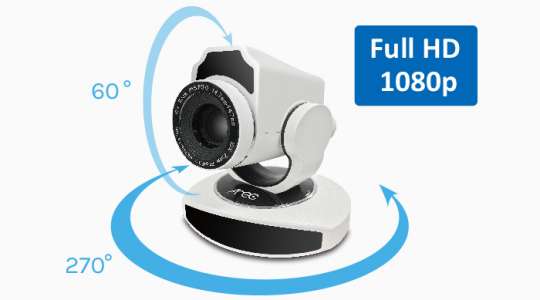

Professional Video Quality for Conferencing Rooms
AREC CI-T21H Auto-Tracking PTZ Camera, with 270 degree rotation, a 60 degree tilt range and 10x zoom, makes pro-quality Full HD 1080p video with autofocus for conferencing rooms and live streaming at an affordable price.

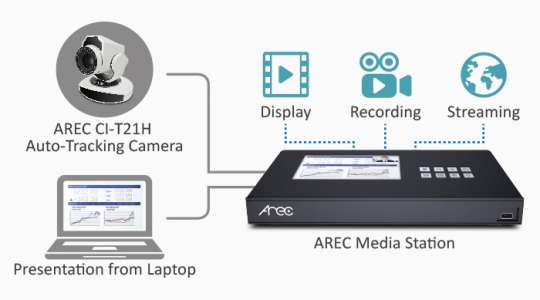

Easy Implementation for Any Type of Indoor Scenario
Combining RJ-45, HDMI and USB outputs, AREC CI-T21H Auto-Tracking Camera can be used with AREC Media Stations for Lecture Capture, any Video Conference System, either HW or SW-based, and even stream to a Live Streaming Service directly.

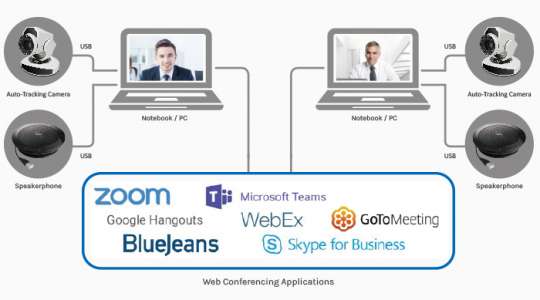

Compatible with Popular Web Conferencing Applications
AREC CI-T21H works seamlessly with all major video conferencing software with a plug-and-play USB connection, including Zoom, Gotomeeting, Skype for Business, Microsoft, and Cisco Webex.

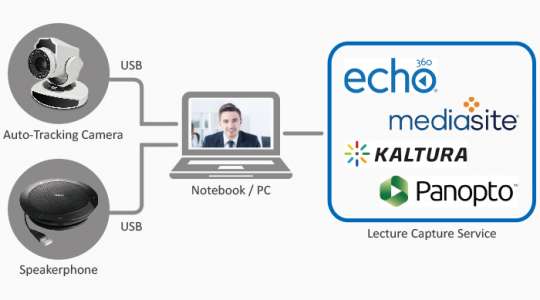

Compatible with Lecture Capture Service
Via HDMI, USB and IP transmission, AREC CI-T21H is compatible with various lecture capture platform, such as Echo 360, Panopto, Mediasite, and Kaltura, providing high-quality video for lecture recordings.

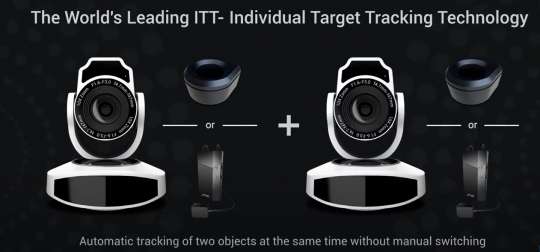

New Feature: Individual Target Tracking (ITT) Technology
With Individual Target Tracking (ITT) Technology*, 2 AREC CI-T21H PTZ Cameras can track two objects separately without any interfering. It’s perfect for multiple speakers or co-hosting scenarios.
*The individual target tracking settings cannot be changed on the customer side. It needs to be done in the factory. Please contact AREC sales representatives for more details.
the SPECIFICATIONS
| Spec/ Model | CI-T21H Auto-Tracking PTZ Camera |
|---|---|
| Image Sensor | 1/2.8” progressive CMOS |
| Minimum Illumination | 0.5 lux @ F1.8 |
| Video Compression | H.264 |
| Max. Resolution | 1920x1080 @ 60fps (IP Streaming) |
| Video Output Port | HDMI, USB 3.0, RJ-45 (IP Streaming) |
| Network Interface | RJ-45, 100Mbps Ethernet |
| Focal Length | 4.7 - 47mm (10x optical zoom) |
| Iris | F1.6 (wide) / F3.0 (tele) |
| View Angle | 60.9° (wide) ~ 6.43° (tele) |
| Auto-Tracking Technology | AREC's motion-sensitive tracking and continued smooth movement technology |
| Auto-Tracking Range | 3~10m, auto-zoom, works with AM-600; |
| Control Port | RS-232* |
| Control Protocol | VISCA/ Pelco-D/ Pelco-P |
| Network Protocol | RTSP, RTMP, ONVIF |
| Dimension (L x W x H) | 126.7 x 151.2 x 180 mm |
| Weight | 1.1kg |
| Positioner | AM-600 |
| Control Buttons | Power / Tracking On-Off/ Microphone Pairing / Mute |
| Tracktive Effective Distance | Working Distance: 3-10m |
