TAP-AV-1003

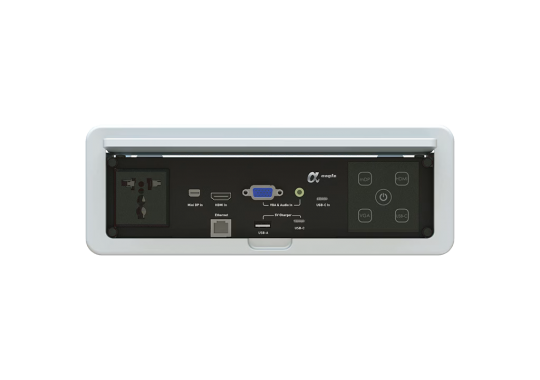

Aegis TAP-AV-1003 is a professional-grade multi-signal converter supporting four input signals: VGA (with 3.5mm audio), Mini DisplayPort, HDMI®, and USB-C, all converted to HDMI® output. Through its equipped HDMI® extender, signals can be transmitted up to 60 meters. The system supports 4K 60Hz high-resolution output. The device features USB-A and USB-C (5V2A) charging capabilities, Ethernet pass-through, and provides a local HDMI® output port. Its touch panel design allows users to manually switch between signal sources. The flexible recessed installation design enables seamless integration into various desktop environments, offering a high-performance and elegant audio-visual solution for professional settings.
THE FEATURES
TAP-AV-1003
◎ Connects four different signal sources (VGA+3.5mm audio, Mini DisplayPort, HDMI®, and USB-C) to the extender via Cat6 cable.
◎ Extender supports transmission distances up to 60 meters.
◎ Users can charge devices via USB-A and USB-C (5V2A).
◎ Supports RJ45 passthrough functionality.
◎ Features automatic input source detection.
◎ Equipped with a 110V-240V power passthrough outlet.
◎ Supports resolution up to 4K 60Hz.
◎ Touch panel with LED indicators.
◎ Supports one HDMI® local output for displaying images.

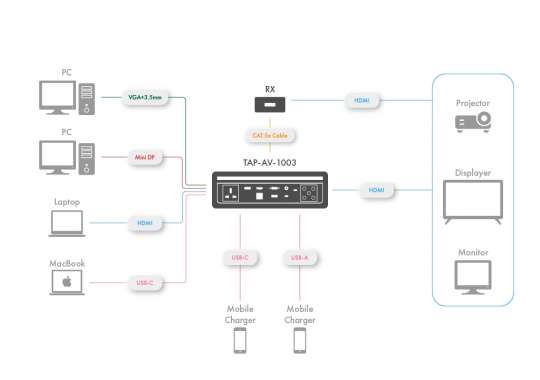

Application Diagram
the SPECIFICATIONS
| HDMI® resolution | 480P/720P/1080P@24Hz/30Hz/50Hz/60Hz, up to 4K@60Hz, supports 1080P@120Hz/3D. |
|---|---|
| HDMI® Audio Formats | Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM |
| HDMI® Maximum Bandwidth | 297MHz |
| HDMI® Maximum Transmission Rate | 6Gbps |
| HDR Support | YES |
| Transmission Latency | <3ms |
| Output Cable Length | 4K/AWG 30 ≤2m |
| Transmission Distance | 4K /Cat-6@60M |
| Power Adapter Specifications | AC 100~240V / DC24V 1.5A |
| Maximum Operating Current | TAP-AV-1003 ≤0.91mA@24V |
| OperatingTemperature Range | -5 ~ +40℃ |
| OperatingHumidity Range | 5 to 85%RH (Non-condensing) |
| Storage Temperature | -15 to 55℃ |
| StorageHumidity | 5 ~95%RH (Non-condensing) |
| Dimensions | Transmitter: 269 x 95.5 x 95.4mm / Receiver: 110 x 55 x 24mm |
| Weight | Transmitter≈1258g / Receiver≈110g |
