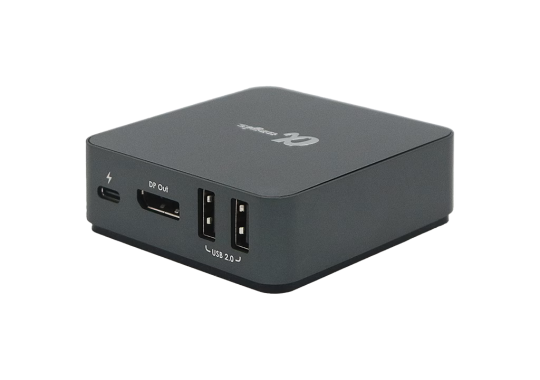

SWT-USBC-1001
Aaegis SWT-USBC-1001 KVM Switch integrates dual USB Type-C to DisplayPort functionality, enabling users to control two source devices with a single set of keyboard, mouse, and monitor. It supports up to 4K 60Hz resolution output and is fully compatible with Samsung DeX mode, providing a seamless big-screen experience for mobile devices. With a bus-powered design via the Type-C interface, it eliminates the need for an external power supply. Combined with plug-and-play functionality, it offers exceptional portability and ease of use. Users can quickly switch between a laptop and a mobile device or between two laptops running simultaneously, offering a highly efficient and convenient solution for managing multiple devices. This KVM switch is designed to enhance productivity and simplify workflows in multi-device environments.
THE FEATURES
SWT-USBC-1001
◎ Dual USB Type-C to DP Output with KVM Functionality, suitable for laptops or mobile devices.
◎ Supports resolutions up to 4K 60Hz.
◎ Bus-powered, plug-and-play operation without an external power adapter.
◎ Supports PD 3.0 charging up to 100W (USB-C Port 2).
◎ Supports Samsung DeX mode.
◎ Supports Apple iPad Pro.
* For other mobile devices with DP Alt Mode, only screen mirroring is supported.

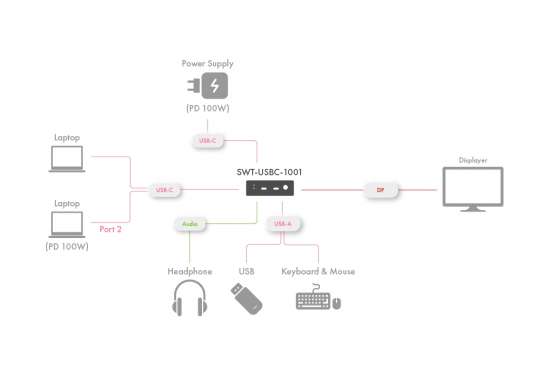

Application Diagram
the SPECIFICATIONS
| Model No. | SWT-USBC-1001 |
|---|---|
| Model Name | Dual C to DP with KVM |
| TYPE C Resolution | 480P/720P/1080P 24Hz/30Hz/50Hz/60Hz, up to4K 60Hz Supports1080P 120Hz,/3D etc. |
| Computer | 2xUSB 3.2 Gen2 Type-C Female |
| Device | 2xUSB 2.0 Type-A Female |
| Output ( PD ) | Support PD3.0 Max 100W(Port 2) |
| HDR Support | YES |
| Output Cable Length | DP:4K/AWG 30 ≤2m,USB3.2-1m |
| Port Selection | Push Button |
| LED Indicator Light | Selected 2 (Green) |
| Maximum Power Consumption | 7.5W |
| Operating Temperature Range | -5 ~ +40℃ |
| Operating Humidity Range | 5 to 85%RH（No Condensation） |
| Storage Temperature | -15 to 60℃ |
| Storage Humidity | 5 ~95%RH(No Condensation) |
| Dimensions | 77.95 x 77.95 x 26.8 mm |
| Weight | 160g |
| Accessories | Manual x1, TYPE-C cable- 9cm |
