EXP-HDBASET-100
Aegis EXP-HDBASET-100 HDMI® extender provides reliable HDMI® 1.4 audiovisual signal transmission over standard category 5e/6 cable, support up to 40 meters at 4K30Hz 4:4:4 or longer distribute distance to 60 meters for 1080p resolution. With uncompressed audio and video distribution technology, EXP-HDBASET-100 guarantee to deliver the best quality of the video per-frame. Bi-Directional IR allows control the sources from the sinks or vice versa, thus enhance the flexibility for users.
THE FEATURES
EXP-HDBASET-100
◎ Supports 1080p 60Hz and 3D via Cat5e/6, with transmission distance up to 60 meters.
◎ Supports 4K 24/25/30Hz (4:4:4) up to 40m over Cat5e/6.
◎ Supports HDCP and CEC.
◎ Supports bidirectional IR transmission.
◎ Supports all digital audio formats.

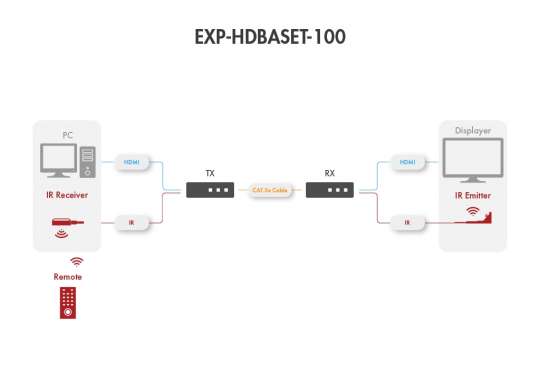

Application Diagram
the SPECIFICATIONS
| Model | EXP-HDBASET-100 TX |
|---|---|
| HDMI® Bandwidth | 340MHz |
| HDMI® resolution | 720P/1080P(60m),4K30 4:4:4(40m),4k60 4:2:0(40m) |
| Audio Format | LPCM、DTS Digital, Dolby Digital |
| HDCP | 1.4/2.2 |
| Input Ports | HDMI® x 1 |
| Control Ports | IR Blaster x 1 – 3.5mm IR Receiver x 1 – 3.5mm |
| IR Frequency | 20-60Khz |
| Power Supply | 5VDC / 2.0 Amp |
| Power Consumption | 10W – Max. |
| Chassis Material | Metal |
| Chassis Color | Black |
| Operating Temperature | 0℃ – 40℃ / 32℉ – 104℉ |
| Storage Temperature | -20℃ – 85℃ / -4℉ – 185℉ |
| Humidity | 0 – 95% RH (Non-Condensing) |
| Dimensions | 112 mm X 76 mm X 25 mm |
| Weight | 600 g |
