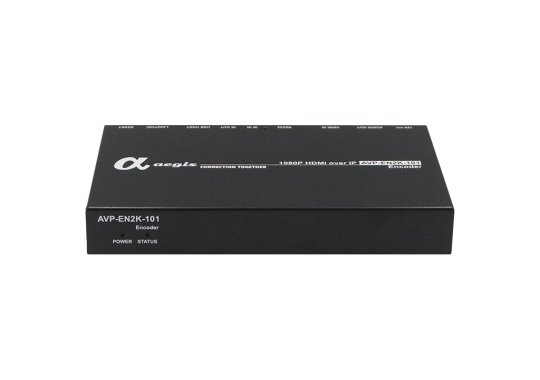

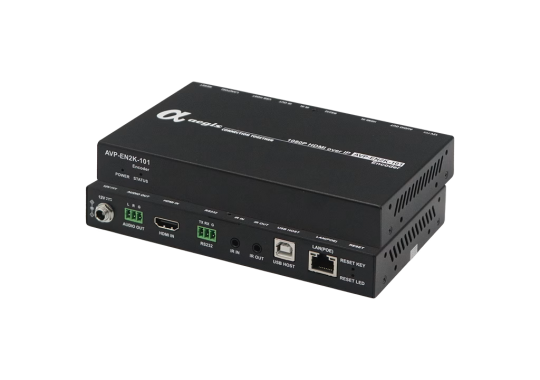

AVP-EN2K-101
The aegis AVP-EN2K-101 is a professional 1080P over IP series encoder, utilizing H.264/H.265 encoding technology to support 1080P/60Hz high-definition video processing. It features an HDMI 1.3 input interface and enables audio-visual and control signal transmission over a 1G network. The device supports multiple professional audio formats and provides analog audio output, while the USB KVM function allows for remote operation. The system supports PoE power supply and a 16×16 video wall configuration, offering versatile management tools for seamless operation.
THE FEATURES
AVP-EN2K-101
Video
◎ Supports 1080P 60Hz H.264/H.265 encoding.
◎ Compatible with HDMI® 1.3 and HDCP 1.4 standards.
◎ Supports up to 16×16 video wall configurations.
◎ Supports one-to-many, many-to-one, and many-to-many applications.
◎ Supports multicast and unicast transmission modes.
◎ Adjustable bitrate encoding (up to 30Mbps).
Connectivity
◎ Supports 1G network interface transmission.
◎ Supports PoE power supply.
◎ Supports DHCP, static IP, and Auto IP configuration.
Audio
◎ Supports LPCM and MPEG4 AAC stereo.
◎ Features analog audio output.
Control
◎ Supports USB keyboard and mouse control.
◎ Supports KVM cross-host switching.
◎ Bidirectional IR remote device control.
◎ Supports bidirectional RS232 communication.
◎ Supports Telnet and HTTP.
◎ Provides API commands for third-party system integration.
Transmission
◎ Supports dual IP stream output：
– Main stream supports 1080P 60Hz output.
– Sub stream supports 360×240 15Hz preview.
◎ Integrates transmission of video signals/audio signals/USB data/RS232 control/HDMI signals/IR control over IP networks.

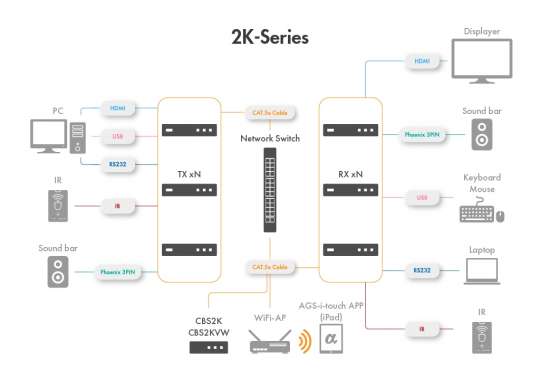

Application Diagram
the SPECIFICATIONS
| Input Video Port | 1 x HDMI® |
|---|---|
| nput Video Type | H.264, MJPEG |
| Input Resolution | 480p 60Hz, 576P 50Hz, 800 x 600 60Hz, 1024x 768 60Hz, 720p 50Hz, 720p 60Hz, 1280 x 800 60Hz, 1280 x 1024 60Hz, 1366 x 768 60Hz, 1440 x 900 60Hz, 1680 x 1050 60Hz, 1920 x 540 60Hz, 1080p 24Hz, 1080p 25Hz, 1080p 30Hz, 1080p 50Hz,1080p 60Hz, 1920 x1200 60Hz |
| Output Video Port | 1 x LAN |
| Input Video Signal | 0.5~1.2 V pp |
| Output Resolution | Large IP stream: from 480p 60Hz to 1920 x 1080 60Hz. Small IP stream: 360 x 240 15 Hz |
| Video Impedance | 100 Ω |
| End-to-End Latency | When works with th e AVP DE2K 101 decoder: About 80 ms (Low latency mode, from TX to RX) About 250 ms (High quality mode, from TX to RX) |
| Input Audio Port | 1 x HDMI® |
| Input Audio Format | LPCM/MPEG4 AACstereo |
| Output Audio Port | 1 x Phoenix connector; 1 x LAN |
| Output Audio Format | Stereo |
| Control Method | Front panel button, IP Control Box (AVP-CBS2K-101), PC configurator (HDMI over IP Console), iPad software AGS-i Touch |
| Operating Temperature | +32°F ~ +113°F (0°C ~+45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| ESDProtection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Supply | 12 V 1 A DC |
| Power Consumption | 6W (Max.) |
| Dimensions (W × H × D) | 175 mm x 25 mm x 100.2 mm / 6.9” x 0.98” x 3.94” |
