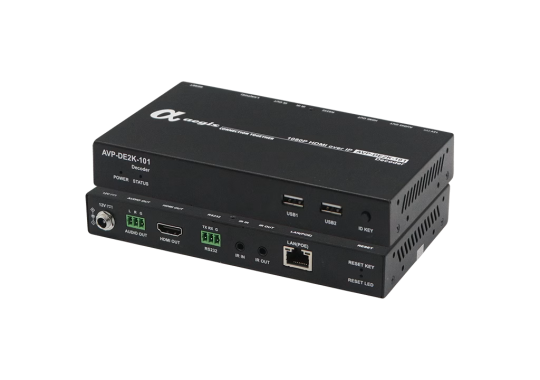

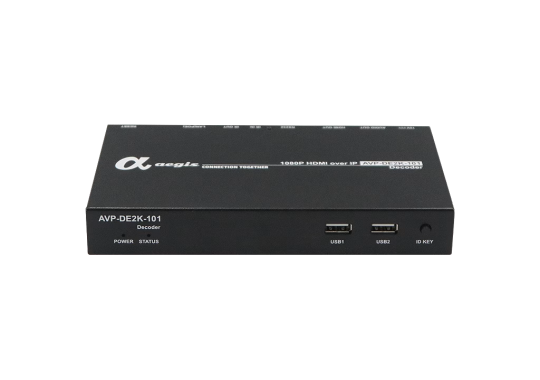

AVP-DE2K-101
Aegis AVP-DE2K-101 is a professional 1080P over IP decoder utilizing H.264/H.265 decoding technology, supporting 1080P 60Hz high-definition video processing. The device provides HDMI 1.3 output interface and front panel quick switching buttons, enabling audio-visual and control signal transmission via 1G network. The decoder features auto-scaling functionality that automatically adjusts output resolution according to the display's EDID. It supports various professional audio formats and provides analog audio output, along with USB KVM functionality for remote operation. The system supports PoE power supply and 16×16 video wall configuration, offering versatile management tools.
THE FEATURES
AVP-DE2K-101
Video
◎ Supports 1080P 60Hz H.264/H.265 decoding.
◎ Compatible with HDMI® 1.3 and HDCP 1.4 standards.
◎ Supports up to 16×16 video wall configurations.
◎ Supports one-to-many, many-to-one, and many-to-many applications.
◎ Supports multicast and unicast transmission modes.
◎ Supports auto-scaling for output resolution.
Connectivity
◎ Supports 1G network interface transmission.
◎ Supports PoE power supply.
◎ Supports DHCP, static IP, and Auto IP configuration.
Audio
◎ Supports LPCM and MPEG4 AAC stereo.
◎ Features analog audio output.
Control
◎ Front panel ID button for quick source switching.
◎ Supports USB keyboard and mouse control.
◎ Supports CEC one-touch power control.
◎ Bidirectional IR remote device control.
◎ Supports bidirectional RS232 communication.
◎ Supports Telnet and HTTP.
◎ Provides API commands for third-party system integration.
Transmission
◎ Integrates reception of video signals/audio signals/USB data/RS232 control/HDMI signals/IR control over IP networks.

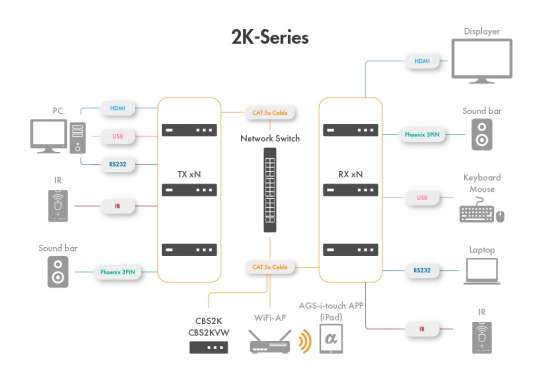

Application Diagram
the SPECIFICATIONS
| Input Video Port | 1 x LAN |
|---|---|
| Input Video Type | H.264 |
| Input Resolution | From 480p 60Hz to 1920×1080 60Hz |
| Output Video Port | 1 x HDMI® |
| Output Video Type | HDMI® 1.3, HDCP 1.4 |
| Output Resolution | 480p 60Hz, 576P 50Hz, 800 x 600 60Hz, 1024x 768 60Hz, 720p 50Hz, 720p 60Hz, 1280 x 800 60Hz, 1280 x 1024 60Hz, 1366 x 768 60Hz, 1440 x 900 60Hz, 1680 x 1050 60Hz, 1920 x 540 60Hz, 1080p 24Hz, 1080p 25Hz, 1080p 30Hz, 1080p 50Hz,1080p 60Hz, 1920 x1200 60Hz |
| Video Impedance | 100 Ω |
| End-to-End Latency | When works with th e AVP EN2K 101 decoder: About 80 ms (Low latency mode, from TX to RX) About 250 ms (High quality mode, from TX to RX) |
| Input Audio Port | 1 x LAN |
| Input Audio Format | LPCM/MPEG4 AACstereo |
| Output Audio Port | 1 x Phoenix connector; 1 x HDMI® |
| Output Audio Format | Stereo |
| Control Method | Front panel button, IP Control Box (AVP-CBS2K-101), PC configurator (HDMI over IP Console), iPad software AGS-i Touch |
| Operating Temperature | +32°F ~ +113°F (0°C ~+45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| ESDProtection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Supply | 12 V 1 A DC |
| Power Consumption | 6W (Max.) |
| Dimensions (W × H × D) | 175 mm x 25 mm x 100.2 mm / 6.9” x 0.98” x 3.94” |
