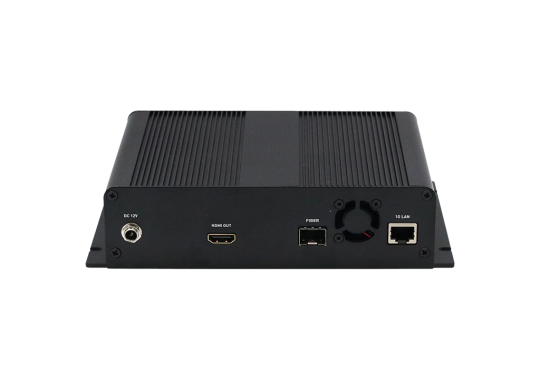

4KPROIP-FOC-DE-U
The aegis 4KPROIP-KVM fiber series includes the 4KPROIP-FOC-EN-U encoder and 4KPROIP-FOC-DE-U decoder. The aegis 4KPROIP-FOC-DE-U fiber KVM decoder is the receiving component of a professional-grade long-distance IP video transmission system, supporting UHD 4K60Hz (4:4:4) video processing. It receives signals from a 10Gb Ethernet switch via a fiber optic interface, decodes them, and outputs them through HDMI® to display devices, achieving uncompressed, zero-latency high-quality audio and video playback. A single fiber optic cable supports ultra-long-distance transmission of up to 20 kilometers. The system integrates USB 2.0 KVM functionality, featuring mouse and keyboard interfaces to directly control video source devices at the encoder end. It also includes a 3.5mm audio interface, bidirectional infrared, and RS232 control functions. Through a web interface, users can flexibly configure matrix switching, video walls, and multi-view displays. Combined with video scaling functionality, it is particularly suitable for professional application scenarios requiring long-distance KVM control, such as large venues, inter-building connections, educational campuses, and corporate headquarters.
THE FEATURES
4KPROIP-FOC-DE-U
◎ Supports 4K60Hz ultra-high-definition resolution.
◎ Supports delay-free, lossless and uncompressed HDMI® video transmission.
◎ Supports remote desktop control of host devices.
◎ Supports USB mouse & keyboard control and data capture functionality.
◎ Bidirectional IR pass-through function.
◎ Bidirectional RS232 control support.
◎ 3.5mm audio input/output support.
◎ Resolution scaling function.
◎ Cat 6 network cable transmission up to 100M.
◎ Supports virtual matrix, video wall, multi-view display, and video extender functions.
◎ User-friendly GUI control interface, accessible via smartphone, tablet, laptop, and PC.

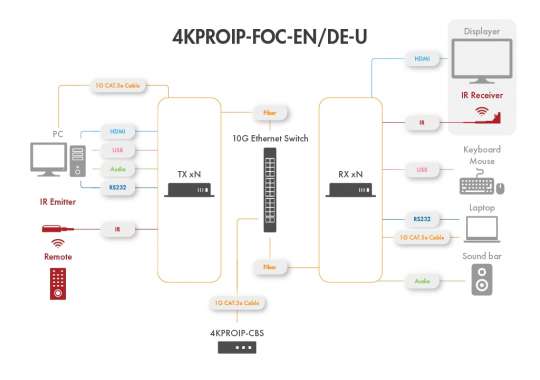

Application Diagram
the SPECIFICATIONS
| Power Supply | Input: 100-240VAC 50-60Hz Output:12V / 3A |
|---|---|
| Inputs | 10G Fiber Port SFP x 1 |
| Outputs | HDMI® x1, IR x2, Audio x1, 1G RJ45 x1, RS232 x1, |
| USB A | 480Mpbs USB 2.0 |
| USB B | - |
| HDMI® | HDMI® 2.0 with HDP |
| HDCP | HDCP 2.2 Compliant |
| RS 232 | 115Baud Rate (Pass-through) |
| IR | 30kHz-60kHz (Bi-directional) |
| Compression | Uncompressed |
| Latency | Zero |
| Resolution | 4K/60hz 4:4:4 |
| Weight | 1420g |
| Operating Temperature | -20℃ to +55℃ (-68℉ to 131℉) |
| Storage Temperature | -30℃ to +70℃ (-86℉ to 158℉) |
| Humidity | 10% to 90% |
| Dimensions (L × W × H) | 204x133x48mm |
| Enclosure | Aluminum Housing |
