4KCHANGER-TC1 (Multi-Function Signal Converter)
The aegis 4KCHANGER-TC1 is a professional-grade, multi-functional embedded desktop signal switcher. It supports HDMI®, Mini DisplayPort, VGA, and Type-C inputs, converting them into a unified HDMI® output with a maximum resolution of 4K@60Hz.Featuring intelligent source auto-detection and a one-touch switching button, users can seamlessly switch between four video sources. Its sleek pop-up design integrates seamlessly into desktops, while providing Ethernet passthrough and USB charging capabilities, making it a comprehensive solution for modern conference spaces.
THE FEATURES
4KCHANGER-TC1 (Multi-Function Signal Converter)
◎ Supports Full HD 1080p@60Hz, 3D, and 4Kx2K@60Hz HDMI® signal transmission.
◎ Features audio-video conversion technology, supporting uncompressed and zero-latency transmission of Mini DP, HDMI®, VGA+3.5mm, and USB 3.1 Type-C audio-video signals.
◎ Supports USB 2.0 BC1.2 and USB 3.1 Type-C mobile device charging.
◎ Supports RJ45 passthrough functionality.
◎ Features smart video signal switching with auto-detection and button switching capabilities.
◎ Supports HDCP, CEC, and 24-bit deep color.
◎ Supports 4K 60Hz UHD signal extension up to 5M and 1080P 60Hz FHD signal extension up to 10M via HDMI® 2.0 cable.
◎ Supports uncompressed LPCM audio and compressed audio formats including DTS-HD, Dolby TrueHD, and Dolby Digital.

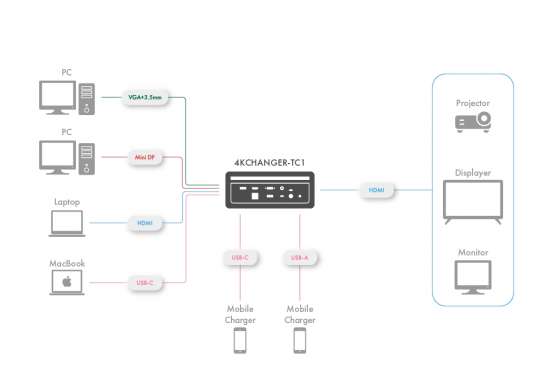

Application Diagram
the SPECIFICATIONS
| Input Ports | Mini DisplayPort X 1 HDMI® X 1 VGA X 1 Audio X 1 -3.5mm Stereo Jack USB 3.1 C X 1 Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru) |
|---|---|
| Output Ports | HDMI® X 1 USB 2.0 A X 1 -5V/ 1.5 Amp BC 1.2 USB 3.1 C X 1- 5V/ 2.0 Amp Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru) |
| Control Ports | Select button X 1 – |
| Power Supply | 24VDC / 1.5 Amp (US,UK,EU Power Plug) |
| Power Consumption | 36 W – Max. |
| Chassis Material | Metal |
| Panel Color | Silver |
| Operating Temperature | 0℃ -40℃ / 32℉ -104℉ |
| Storage Temperature | -15℃ -55℃ / 5℉ -131℉ |
| Humidity | 5 – 85% RH (Non-Condensing) |
| Dimensions ( L × W × H ) | 7.2 in (184 mm) X 3.1 in (80 mm) X 3.6 in (90 mm) |
| Weight | 738 g |
